Model: OD:480×ID380×H45mm
Brand: Yixin

Ti Gr12 Forged Ring

Titanium Gr12 Forged Ring for Subsea Oil&Gas Production Application

Product Description

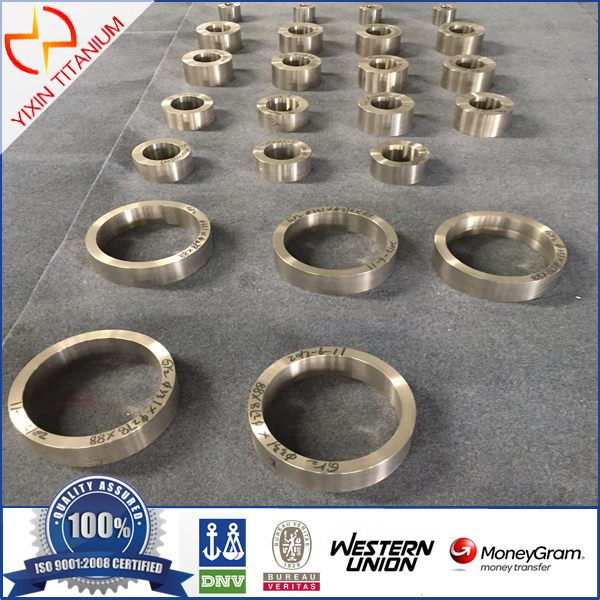

Titanium Gr12 Forged Ring/Titanium Forged Ring/ Titanium forgings


StandardASTM B381
Materials AvailableGr1/Gr2/Gr3/Gr4/Gr5/Gr7/Gr9/Gr12/Gr28
Production scopeOD:300-1500mm; ID:200-1400mm; H:20-500mm
Production MethodForging
ConditionAnnealed
Test

Ultrasonic testing, Visual inspection, Dimensional inspection,

Tensile & Chemical properties analysis


Yixin EN 10204 Material Certificate

    产

         QUALITY CERTIFICATION



合同号

Contract No.

名 称

Name

牌 号

Gr No.

状 态

Condition

尺 寸

Dimensions(mm)

数 量(件)

Amount(pc)

净 重(公斤)

Net Weight(kg)

锭号

Ingot No.

加工方法

Production method

技术标准

Spec.

/

钛环

Ti Ring

Gr12

M

ø480×ø380×15

50.0

/

534H20161213

锻造

Forging

ASTM B381

室温力

学性能

Mechanical Properties at Room Temp.

  状  态

Sample Condition

抗拉强度σb

Tensile Strength

(MPa)

屈服强度σ r0.2

Yield Strength

(MPa)

延伸率δb

Elongation

(%)

断面收缩率ψ

Reduction of Area

(%)

弯曲度

Bending Inspection

(mm/m)

/

M

513

422

20

31

/

/

其 他

Others

外形尺寸

Dimensional Inspection

表面质量

Visual Inspection

无损检测

Ultrasonic Inspection

水压试验

Hydraulic

压扁试验

Flattening

熔炼次数

No. Of Melting

/

合格 OK

合格 OK

合格 OK

/

/

3

/

化学成份 Chemical Composition(%)

部 位

Location

Ti

/

/

/

/

Mo

Ni

Fe

C

N

H

O

其它Others

单个Each

总和Total

Top

Remainder

/

/

/

/

0.32

0.73

0.04

0.03

0.01

0.001

0.13

0.1

0.4

Middle

Remainder

/

/

/

/

/

/

/

/

/

/

/

/

/

Bottom

Remainder

/

/

/

/

/

/

/

/

/

/

/

/

/
