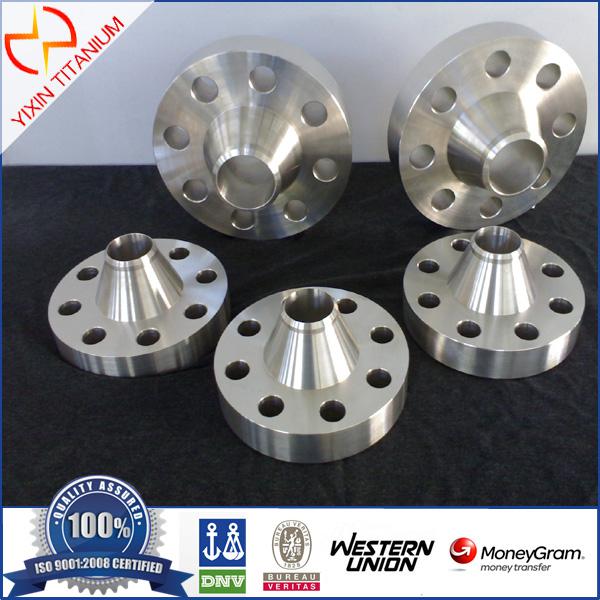

ASTM B 16.5 GR2 Titanium Weld Neck Flange Class 150lb with 2"

Product Description

Production name: Titanium Weld Neck Flange

Class: 150lb,300lb,400lb,600lb,900lb,1500lb

Size:1/2" to 24"

Standard: ANSI B16.5

Material: Titanium GR2

Process: Forging and Machining

Test: DT TEST AND NDT TAST



Standard

ASME/ANSI B16.5,DIN2630~2633,BS etc

Nace

NACE MR 01-75, MR 01 03

Material

Gr1,Gr2,Gr5,Gr7,Gr9,Gr12

Size

DN10 to DN1500

Pressure rating

0.6~32Mp

(DIN)   PN6,PN10,PN16,PN25 though PN250

(ASNI) CL150,CL300,CL600,CL900,CL1500

Working temperature

-60°C~250°C

Flange surface

FF,RF,TG,RJ etc

Quality control

Ultrasonic Testing & Material Test Report

Packaging

Wooden cases

Available
Flange types

a.Slip On Flange

b.Welding Neck Flange

c.Threaded Flange(Screwed Flange)

d.Plain Flange

e.Blind Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. welded flange

i. titanium large-diameter flange

Value Added Services

 Customized Flanges

Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B
