Model: OD:155×OD147×H600mm
Brand: Yixin

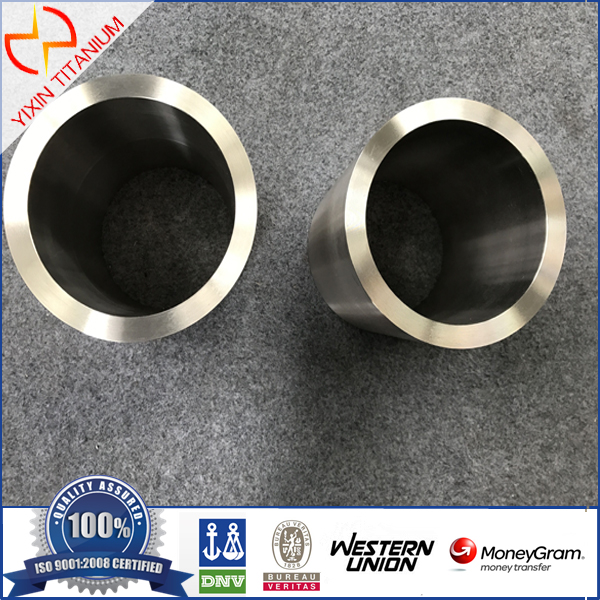

Titanium Heavy Wall Pipe- Mechanical Tubing

Titanium Heavy Wall Tube made from bar

Product Description

Titanium Heavy Wall  Mechanical Tubing (Titanium Grade2)


Pipes with very heavy wall thickness can be made out of round bar by drilling or extruding.

Titanium tubes with outside diameter and wall thickness can also be made.


ASTM B337 / ASME SB337 have been discontinued and replaced by ASTM B861 / ASME SB861 (titanium seamless pipe) and ASTM B862 /ASME SB862 (Titanium welded pipe).


CP ( Grade 1, Grade 2)Ti

Grade 7Ti-0.2Pb

Grade 9Ti-3Al-2.5V

Grade 12Ti-0.3Mo-0.8Ni

Production scope

OD: 300-1500mm;

ID: 200-1400mm;

H: 20-500mm


If you want to know more about our heavy wall pipe, please contact us!


Delivery Condition: Annealed

Test Method:

Ultrasonic testing, Visual inspection, Dimensional inspection,

Tensile & Chemical properties analysis



Yixin EN 10204 Material Certificate

    产

         QUALITY CERTIFICATION



合同号

Contract No.

名 称

Name

牌 号

Gr No.

状 态

Condition

尺 寸

Dimensions(mm)

数 量(件)

Amount(pc)

净 重(公斤)

Net Weight(kg)

锭号

Ingot No.

加工方法

Production method

技术标准

Spec.

/

钛环

Ti Ring

Gr2

M

OD:155×OD147×H600mm

20.0

/

534H20161218

锻造

Forging

ASTM B381

室温力

学性能

Mechanical Properties at Room Temp.

  状  态

Sample Condition

抗拉强度σb

Tensile Strength

(MPa)

屈服强度σ r0.2

Yield Strength

(MPa)

延伸率δb

Elongation

(%)

断面收缩率ψ

Reduction of Area

(%)

弯曲度

Bending Inspection

(mm/m)

/

M

452

370

26

35

/

/

其 他

Others

外形尺寸

Dimensional Inspection

表面质量

Visual Inspection

无损检测

Ultrasonic Inspection

水压试验

Hydraulic

压扁试验

Flattening

熔炼次数

No. Of Melting

/

合格 OK

合格 OK

合格 OK

/

/

3

/

化学成份 Chemical Composition(%)

部 位

Location

Ti

/

/

/

/

Al

V

Fe

C

N

H

O

其它Others

单个Each

总和Total

Top

Remainder

/

/

/

/

/

/

0.217

0.006

0.013

0.001

0.18

0.1

0.4

Middle

Remainder

/

/

/

/

/

/

/

/

/

/

/

/

/

Bottom

Remainder

/

/

/

/

/

/

/

/

/

/

/

/

/
